王國入口 / 全部商品 / TinkerBoard / 【現貨】華碩Tinker開發板 3S (16GB eMMC/4GB記憶體) ASUS Tinker Board 3S

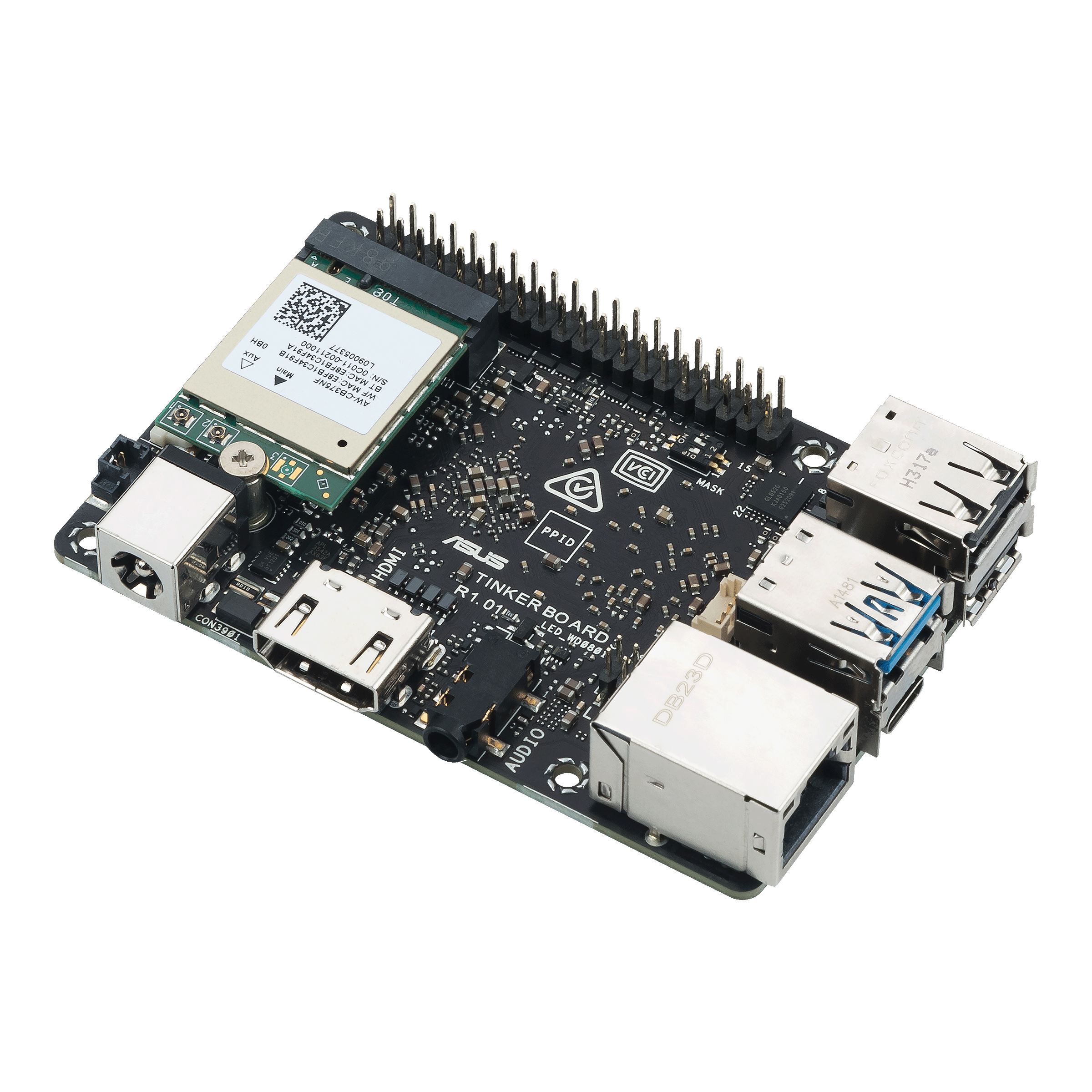

【現貨】華碩Tinker開發板 3S (16GB eMMC/4GB記憶體) ASUS Tinker Board 3S
NT$5,880剩 1 件
前往購物車 →(結帳將於 S08 開放)
<h3><strong>含稅後售價為6,174</strong></h3> ASUS IoT Tinker Board 3S 採用 64 位元四核心 Arm® Cortex-A55 處理器 (Rockchip RK3566) 和基於 Arm 的 Mali™-G52 GPU，可提供卓越的圖形處理能力和強大的資料安全性。這款緊湊型無風扇單板電腦(SBC) 專為無縫整合而設計，具有多功能軟體套件，可實現快速市場部署，並支援FOTA、進階控制和SDK，為智慧零售和醫療保健應用提供完整的解決方案。它支援物聯網網關、數位看板、自助服務亭、醫療設備等。
商品說明
- 64-bit, quad-core Arm Cortex-A55 processor, built on the Arm v8 architecture
- Multi-display with HDMI and MIPI DSI, 4K full HD support
- 802.11 a/b/g/n/ac wireless & BT 5.0 (2T2R) 12-19V DC power input
- Ready-to-deploy panel solution with extensive technical support
- Developer-friendly SDK for integration
原廠說明
https://tinker-board.asus.com/series/tinker-board-3s.html
規格

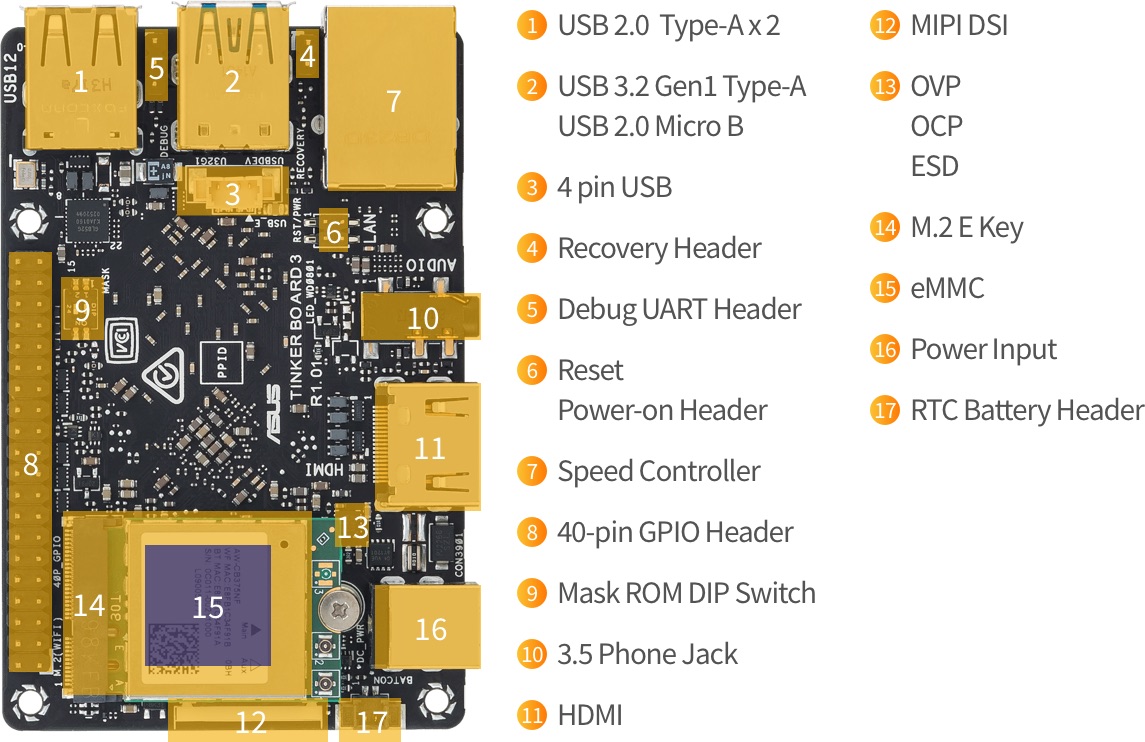

| Soc | Rockchip RK3566 |
| CPU | Quad-core Arm® Cortex®-A55 |
| GPU | Arm Mali™-G52 |
| NPU | RockchipNPU |
| Display | 1 x HDMI, supports up to 4096 x 2160 @ 60 Hz 1 x MIPI DSI, Supports four lanes up to 6 Gbps, 1920 x1080 @ 60 Hz (22 pin) |
| Memory Size | Dual-channelLPDDR4X 4GB |
| Storage | 16GB eMMC Micro SD(TF) card slot (push/pull) |
| M.2 E key 2230 | 1 x for WiFi 5/6 & BT module (PCIe 2.0 x1, USB 2.0) |
| Audio | 1 x 3.5 phone jack (with mic) 1 x HDMI audio |
| USB | 1 x USB 3.2 Gen1 Type-A 2 x USB 2.0 Type-A ports 2 x USB 2.0 Micro B, device only 1 x USB 2.0 4-pin header |
| Internal Headers | 1 x 40-pin GPIO headers includes: - up to 2 x SPI bus - up to 2 x I2C bus - up to 2 x UART - up to 3 x PWM - up to 1 x PCM/I2S(master/slave) - up to 1 x S/PDIF TX - 2 x 5V power pins - 2 x 3.3V power pins - 8 x ground pins 1 x 2-pin recovery header 1 x 2-pin power-on & reset header 1 x 3-pin debug UART header 1 x 2-pin DC fan header 1 x 2-pin RTC battery header 1 x MaskromDIP switch |
| Power Connector 12-19V | 1 x DC barrel power input jack (5.5/2.5 mm) |
| OS Support | Android 13, Debian 11 , Yocto 4.0 |
| Dimension | 3.37 inch x 2.125 inch (85 × 56 mm) |
| Operation temperature | 0℃ ~ 60℃ |
| Non-operation temperature | -40℃ ~ 85℃ |
| Non-operation humidity | 10%-85% (non-condensing) |
| Note | *Default for 1 x 802.11 a/b/g/n/ac wireless & BT 5.0 (2T2R) |
出貨內容
- ASUS Tinker Board 3S X1
