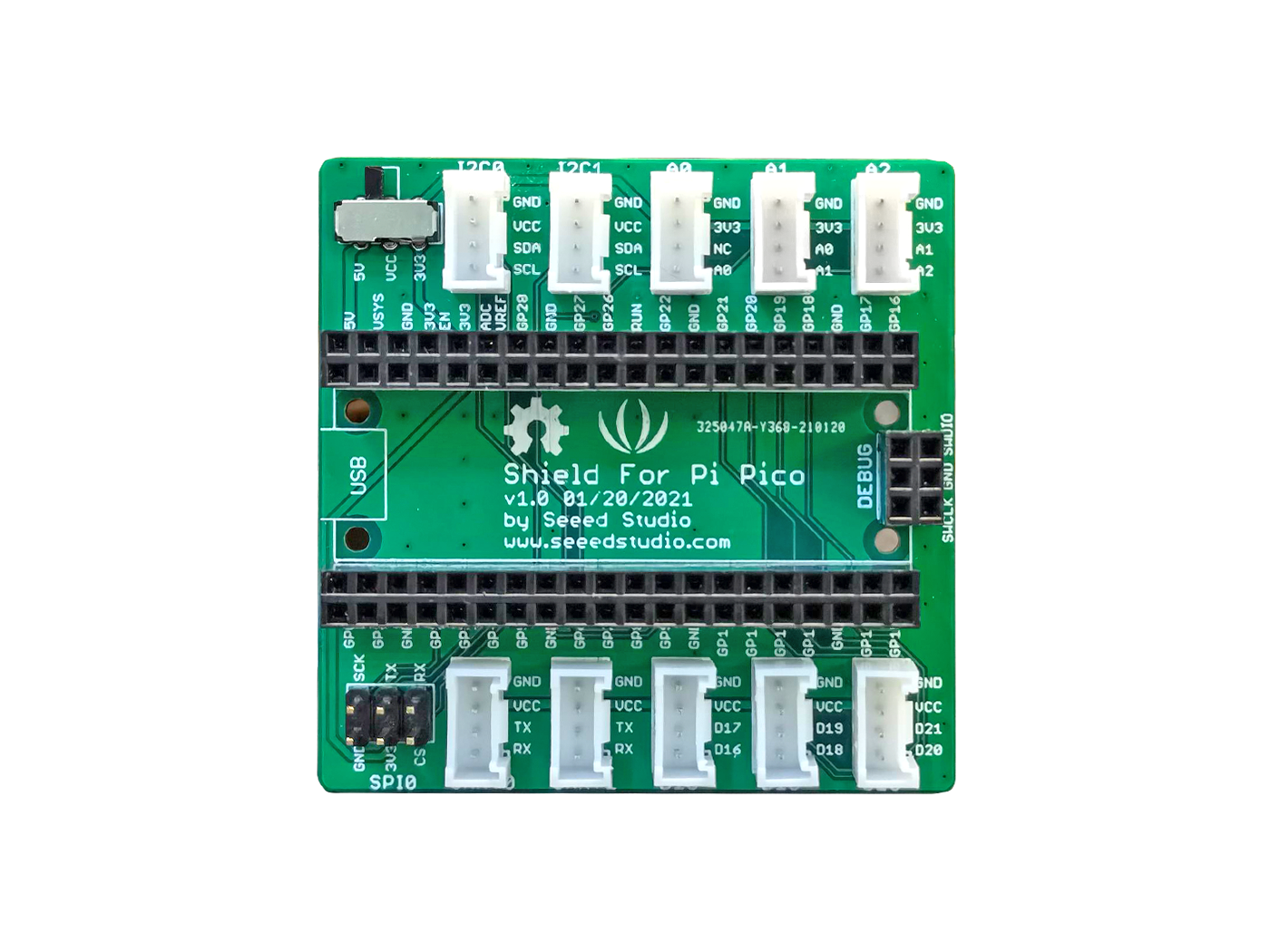

王國入口 / 全部商品 / Grove系列 / SeeedStudio Pi Pico Grove 擴充板
商品說明
Grove interface for 2× I2C, 2× UART, 3× Digital, 3× Analog, Power Switch, 1x SPI, SWD Debug Interface

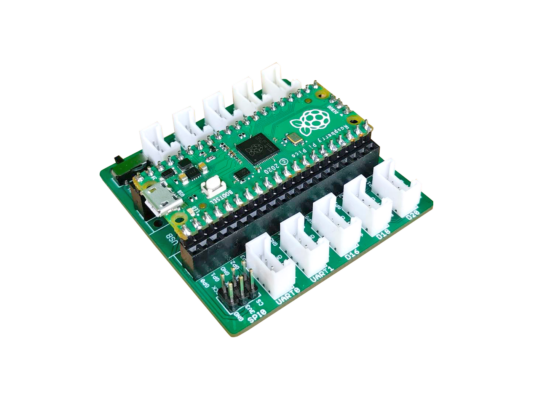

使用範例
Pi Pico需另購
規格
|
Analog Port |
Include 3 anlog ports, A0, A1, A2 |
|
Digital Port |
Include 3 digital ports, D16, D18, D20 |
|
UART Port |
Include 2 UART port |
|
I2C Port |
Include 2 I2C ports |
|
SPI Port |
Provide one SPI0 port |
|
Power Switch |
Provide 5V/3.3V selectable power switch |
|
Operating Temperature |
-25℃ to +85℃ |
|
Operating voltage |
Input power 3/5 V |
|
Dimension |
56mm * 56mm |
