Seeed Studio XIAO ESP32S3 Sense開發板

Name: Seeed Studio XIAO ESP32S3 Sense開發板
Price: 475 TWD
Availability: InStock

NT$475有貨 8

XIAO

前往購物車 →(結帳將於 S08 開放)

Seeed Studio XIAO ESP32S3 採用雙核 ESP32S3 晶片，支援 Wi-Fi 和 BLE 無線連接，並允許電池充電。它整合了內置攝影機感測器、數位麥克風。它提供 8MB PSRAM、8MB 快閃記憶體和外部 SD 卡插槽。所有這些都使其適合嵌入式機器學習，例如智慧語音和AI視覺。

商品說明

本商品為研發實驗用的模組，無法隨插即用，須經專業背景人士（如：工程師、研究生、師生）撰寫程式、燒錄、接線等二次加工後，才具備訊號傳輸功能。並非直接插電後可直接使用之射頻模組，非屬電信管制射頻器材，購買前請詳閱商品說明。

規格

處理器	ESP32-S3R8
處理器	Xtensa LX7 dual-core,32-bit processor that operates at up to 240 MHZ
無線通訊	Complete 2.4GHz Wi-Fi subsystem BLE: Bluetooth 5.0, Bluetooth mesh
內建感測器	oV2640 camera sensor for 1600*1200 數位麥克風
記憶體	On-chip 8M PSRAM & 8MB Flash Onboard SD Card Slot, supporting 32GB FAT

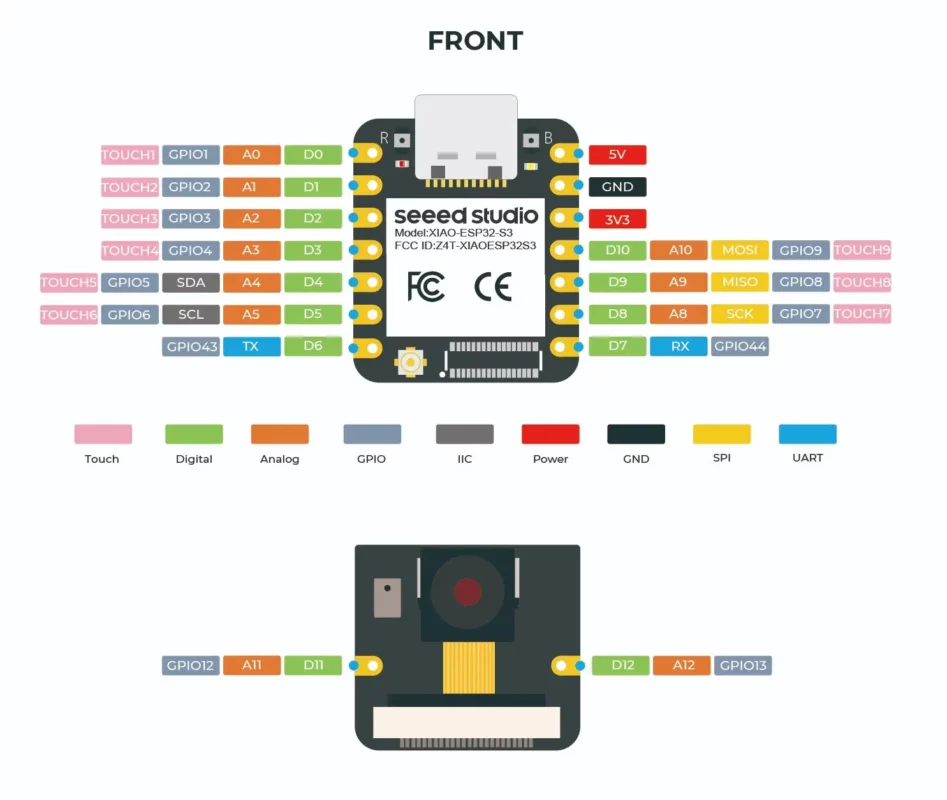

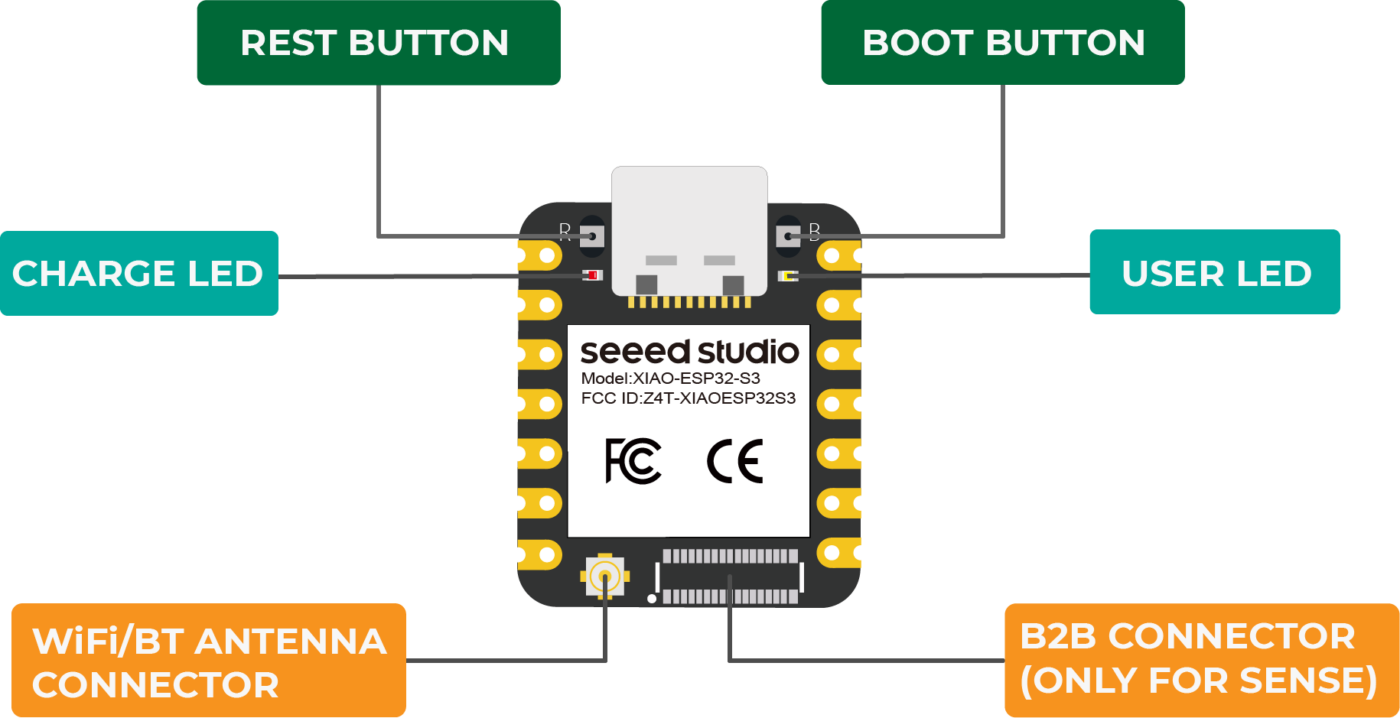

通訊介面	1x UART,1x lIC,1x lIS,1x SPI,11x GPIOs (PWM),9xADC，1x User LED, 1x Charge LED,1x B2B Connector(with 2 additional GPIOs) 1x Reset button, 1x Boot button
尺寸	21 x 17.5 x 15mm (with expansion board)
電源	輸入電壓 (Type-C): 5V 輸入電壓(BAT): 4.2V
	Circuit operating Voltage (ready to operate): -Type-C: 5V@38.3mA - BAT: 3.8V@43.2mA (with expansion board)
	Webcam Web application: - Type-C: - - Average power consumption: 5V/138mA - - Photo moment: 5V/341mA - Battery: - - Average power consumption: 3.8V/154mA - - Photo moment: 3.8V/304mA
	Microphone recording & SD card writing:- Type-C: - - Average power consumption: 5V/46.5mA - - Peak power consumption: 5V/89.6mA - Battery: - - Average power consumption: 3.8V/54.4mA - - Peak power consumption: 3.8V/108mA
	Charging battery current：100mA
Low Power Consumption Model (Supply Power: 3.8V	Modem-sleep Model: ~44mA Light-sleep Model: ~5mA Deep Sleep Model: ~3mA
Wi-Fi Enabled Power Consumption	Active Model: ~ 110 mA (with expansion board)
BLE Enabled Power Consumption	Active Model: ~ 102 mA (with expansion board)
工作溫度	-40°C ~65°C
