Seeed Studio XIAO SAMD21 (預焊針腳)
NT$260有貨 8
前往購物車 →(結帳將於 S08 開放)

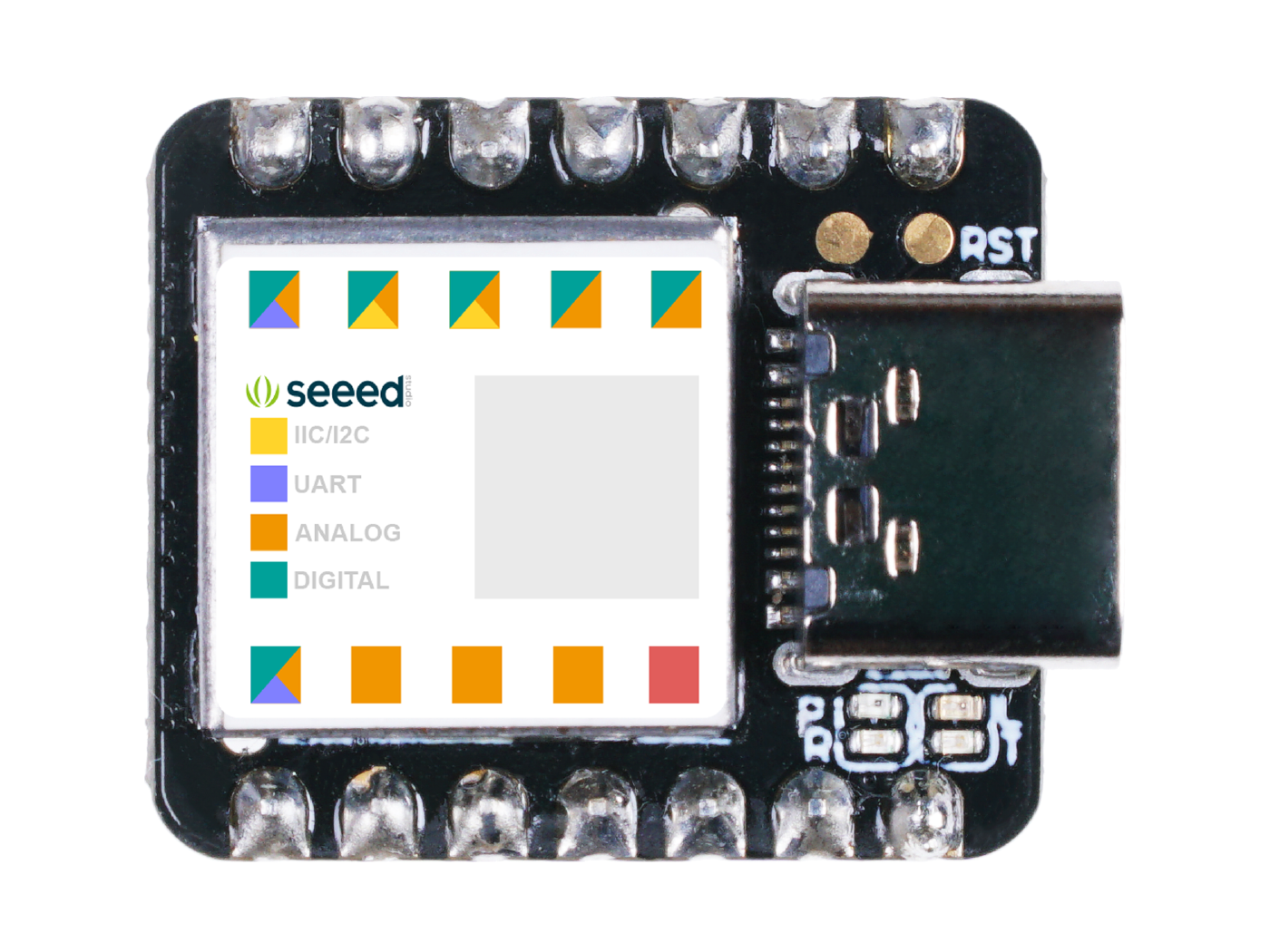

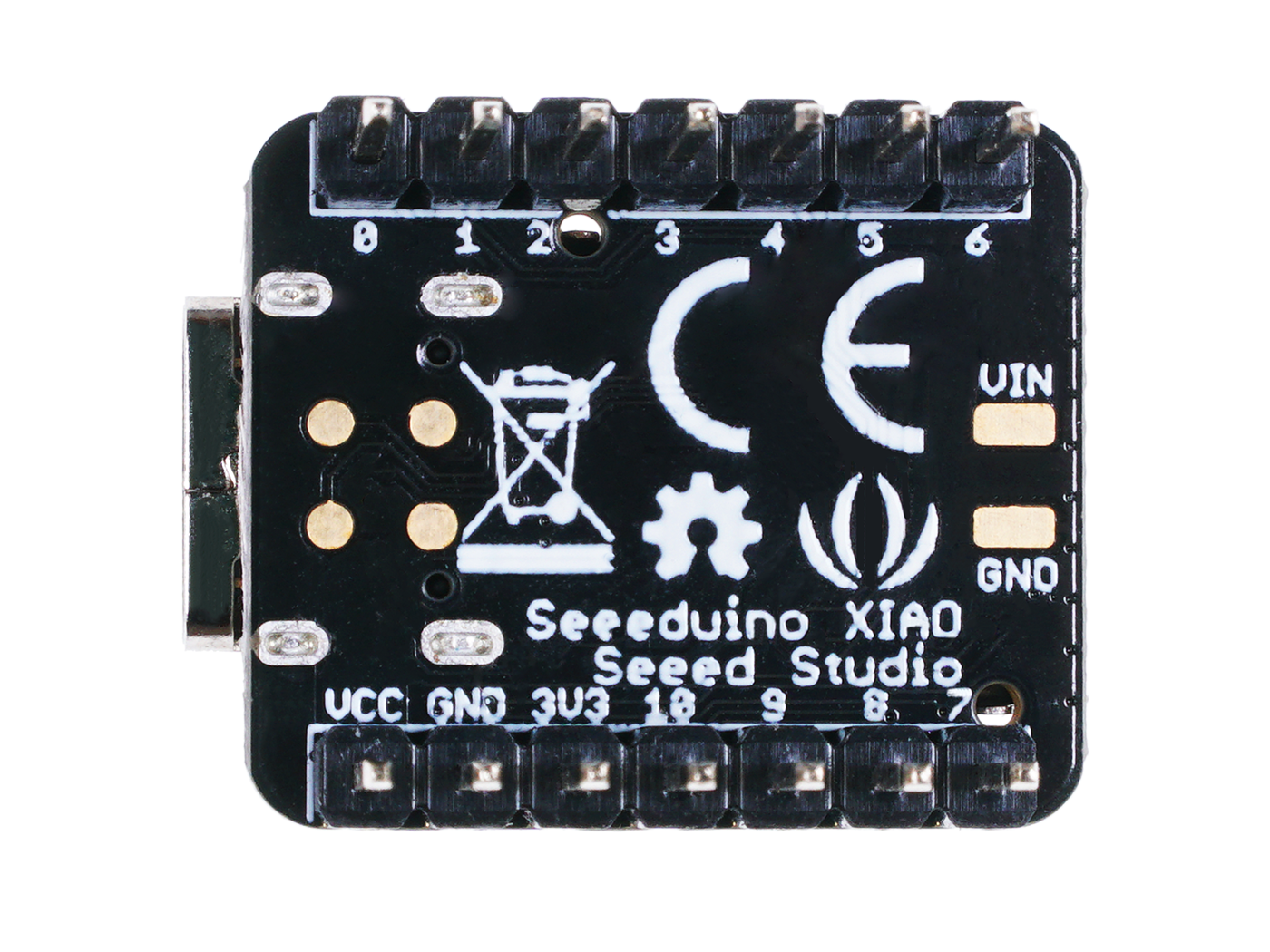

Seeed Studio XIAO SAMD21(Pre-Soldered) is the first pioneering product of the XIAO series featuring the SAMD21 microchip and is Arduino-compatible. With its exquisite design, low power consumption, and built-in Type-C, it's perfect for TinyML, smart wearable devices, and IoT projects.
商品說明
https://youtu.be/AS2OsrYNmxk
規格
| 項目 | 敘述 |
| CPU | ARM Cortex-M0+ CPU(SAMD21G18) running at up to 48MHz |
| 儲存裝置 | 256KB Flash,32KB SRAM |

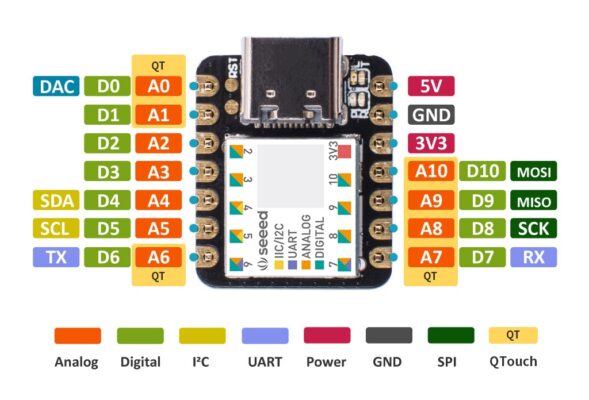

| I/O 腳位 | 14 GPIO PINs、11 analog PINs、11 digital PINs、1 DAC output Pin |
| 介面 | 1 I2C interface、1 UART interface、1 SPI interface、USB Type-C 介面 |
| LEDs | 1 user LED, 1 power LED, and two LEDs for serial port downloading |
| Reset 按鈕 | two reset buttons short connect to reset |
| 軟體相容性 | Arduino IDE |
| 尺寸 | 21x17.5 mm |
